WORLDSEMI WS2813B Series Built-in IC Breakout DC5V Low Power Phantom LED Integrated Beads
WORLDSEMI WS2813B Series Built-in IC Breakout DC5V Low Power Phantom LED Integrated Beads
品牌: WORLDSEMI
尺寸: 5050-6P
型号: WS2813B-V5/W WS2813B-RGBW
Whether imported: No
Item No : NA
Wattage : 0.3(W)
Forward Voltage: 5(V)
Rated current : 0.016(A)
Fluorescent powder brand:NA
Bracket Material : Copper
Color tolerance : NA(SDCM)
Voltage Temperature Coefficient : NA(mV/°C)
Product Features:
- All components are integrated in a 5050 package, no need for any other peripheral components to form a complete external control pixel point
- Intelligent reverse connection protection, no damage to components when 5V power supply is reversed.
- Built-in signal shaping circuit, any one of the like cable point after receiving the signal through the waveform shaping and then output, to ensure that the line waveform distortion will not be cumulative.
- 256 levels of brightness per pixel point for quad-color colors
- Port scanning frequency 2KHz.
- Serial cascade interface, able to receive and decode data through a single signal line
- Continuous transmission of broken points, an additional way to add a signal line, to achieve dual signal transmission, in the case of damage to a single pixel point, does not affect the overall display effect
- No additional circuitry is required when the transmission distance between any two points does not exceed 5 meters.
- Data can be sent at speeds up to 800Kbps.
- The color of the light is highly consistent and cost effective.
WORLDSEMI
SKU:
View full details![WORLDSEMI WS2813B Series Built-in IC Breakout DC5V Low Power Phantom LED Integrated Beads](http://worldsemi.myshopify.com/cdn/shop/files/2813A-5054.jpg?v=1723262493&width=1445)
![WORLDSEMI WS2813B Series Built-in IC Breakout DC5V Low Power Phantom LED Integrated Beads](http://worldsemi.myshopify.com/cdn/shop/files/13B-V5-W.jpg?v=1721717416&width=1445)
![WORLDSEMI WS2813B Series Built-in IC Breakout DC5V Low Power Phantom LED Integrated Beads](http://worldsemi.myshopify.com/cdn/shop/files/13B-RGBW.jpg?v=1721718266&width=1445)
![WORLDSEMI WS2813B Series Built-in IC Breakout DC5V Low Power Phantom LED Integrated Beads](http://worldsemi.myshopify.com/cdn/shop/files/WS2813B-V5-W.jpg?v=1720756207&width=1445)
![WORLDSEMI WS2813B Series Built-in IC Breakout DC5V Low Power Phantom LED Integrated Beads](http://worldsemi.myshopify.com/cdn/shop/files/WS2813B-RGBW.jpg?v=1721373052&width=1445)
![WORLDSEMI WS2813B Series Built-in IC Breakout DC5V Low Power Phantom LED Integrated Beads](http://worldsemi.myshopify.com/cdn/shop/files/2813E-5050.jpg?v=1723182264&width=1445)
![WORLDSEMI WS2813B Series Built-in IC Breakout DC5V Low Power Phantom LED Integrated Beads](http://worldsemi.myshopify.com/cdn/shop/files/WS2813B.jpg?v=1723182459&width=1445)
![WORLDSEMI WS2813B Series Built-in IC Breakout DC5V Low Power Phantom LED Integrated Beads](http://worldsemi.myshopify.com/cdn/shop/files/2813C-5050.jpg?v=1723262371&width=1445)
![WORLDSEMI WS2813B Series Built-in IC Breakout DC5V Low Power Phantom LED Integrated Beads](http://worldsemi.myshopify.com/cdn/shop/files/2813C-2121.jpg?v=1723262152&width=1445)
![WORLDSEMI WS2813B Series Built-in IC Breakout DC5V Low Power Phantom LED Integrated Beads](http://worldsemi.myshopify.com/cdn/shop/files/WS2813B-3535.jpg?v=1723435088&width=1445)

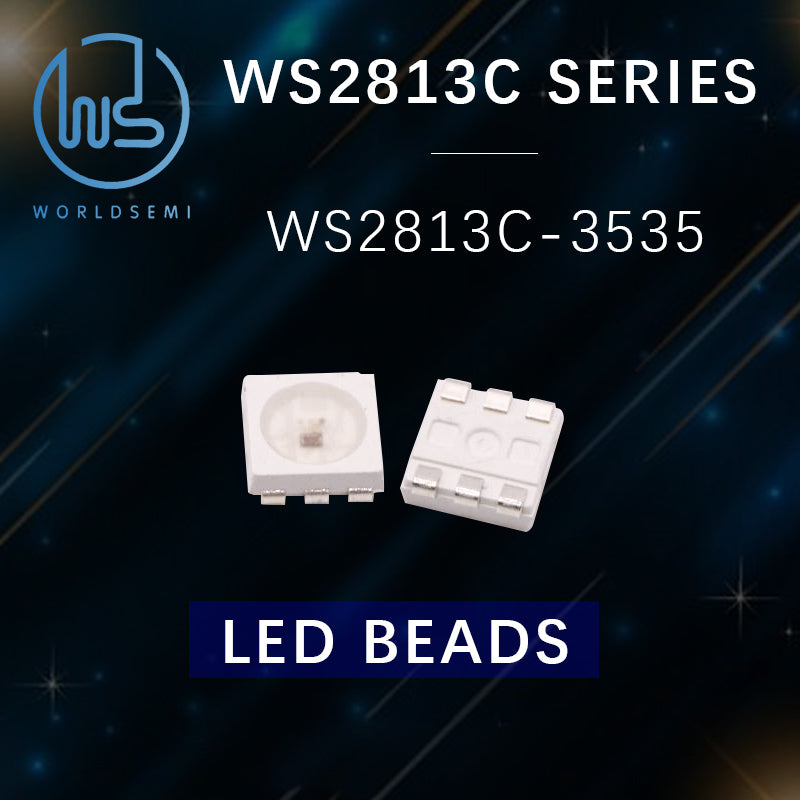

![WORLDSEMI WS2813B Series Built-in IC Breakout DC5V Low Power Phantom LED Integrated Beads](http://worldsemi.myshopify.com/cdn/shop/files/WS2813C-3535.jpg?v=1723442613&width=1445)
